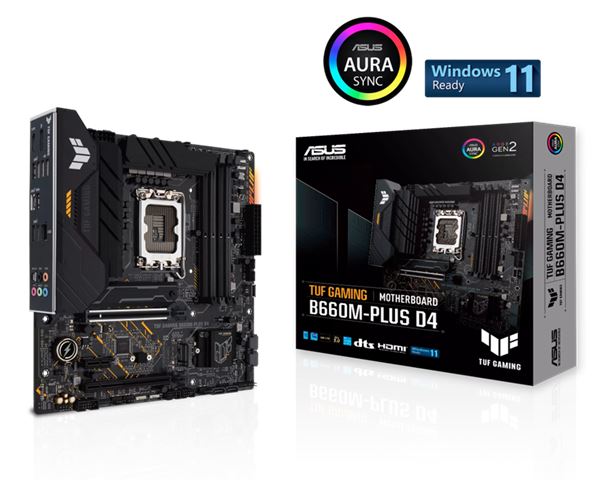

ASUS TUF GAMING B660M-PLUS D4
- 5% popusta za jednokratno plaćanje – virmansko, gotovina, kartica.
NEMA NA ZALIHI
SKU: 0001250983
TUF GAMING B660M-PLUS D4, LGA1700, BUS[MHz] 1000, DDR4, Broj utora 4, PCIe 3.0 x16 1, PCIe x4 1, PCIe x1 1, SATA3 4, RAID 0, RAID 1, RAID 1+0, RAID 5, 8-kanalni audio, 1x 2.5Gb Ethernet, Display Port 1, µATX, M.2 2, USB 3.2 6
ASUS TUF GAMING B660M-PLUS D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid and stable performance for marathon gaming. Aesthetically, TUF GAMING B660M-PLUS D4 sports the new TUF Gaming logo and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.
| Socket | LGA1700 |
|---|---|
| CPU | Intel Celeron |
| Chipset (N) | Intel B660 |
| BUS[MHz] | 1000 |
| Memorija | DDR4 |
| Broj utora | 4 |
| Max. memorije [GB] | 128 |
| Takt memorije [MHz] | 2133 |
| AGP 4x/8x | n/a |
| PCI | n/a |
| PCIe 3.0 x16 | 1 |
| PCIe x16 | n/a |
| PCIe x8 | n/a |
| PCIe x4 | 1 |
| PCIe x1 | 1 |
| PCI-X | n/a |
| PATA | n/a |
| SATA II | n/a |
| SATA3 | 4 |
| RAID | 0 |
| Audio | 8-kanalni audio |
| Mreža | 1x 2.5Gb Ethernet |
| Parallel | n/a |
| Serial | n/a |
| PS/2 mouse | n/a |
| PS/2 keyboard | n/a |
| D-sub | n/a |
| DVI | n/a |
| Display Port | 1 |
| HDMI | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
| USB 3.0 | 0 |
| S/PDIF Out | Y |
| 4-pin ATX 12V Power | 1 |
| 8-pin ATX 12V Power | Y |
| 20-pin ATX Power | n/a |
| 24-pin ATX Power | Y |
| Front panel audio | Y |
| Chasis Intrusion | n/a |
| CD Audio In | n/a |
| Chasis Fan Power | 3 |
| CPU Fan Power | 2 |
| Format ploče | u00b5ATX |
| WLAN connector | n/a |
| Podrška za integrirani grafičk | Y |
| SATA Express | n/a |
| M.2 | 2 |
| U.2 | n/a |
| USB 3.1 | 0 |
| USB 3.1 | 0 |
| PCIe 4.0 x16 | 1 |
| USB 3.2 | 6 |
| Wireless | Nema |
| PCIe 5.0 x16 | 1 |
| PCIe 4.0 x1 | 1 |
