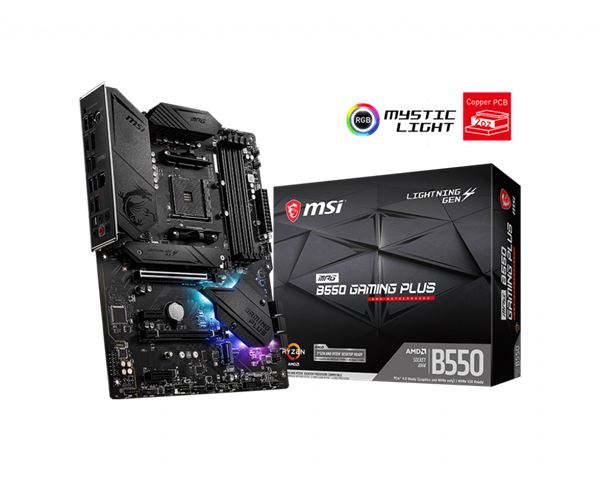

MBO AM4 MSI MPG B550 GAMING PLUS
163,94 €
Najniža cijena u zadnjih 30 dana: 163,94 €NEMA NA ZALIHI
SKU: 0001247056
MPG B550 GAMING PLUS , Socket AM4, 1x PCI-E 4.0/3.0 x16 slot + 1x PCI-E 3.0 x16 slot, DisplayPort, HDMI , 4 DIMMs, Dual Channel DDR4-4866, 3x PCI-E 3.0 x1 slots , 1x M.2 Gen4 x4 + 1x M.2 Gen3 x4 slot 6x SATA 6Gb/s ports,
MPG B550 GAMING PLUS , Socket AM4, 1x PCI-E 4.0/3.0 x16 slot + 1x PCI-E 3.0 x16 slot, DisplayPort, HDMI , 4 DIMMs, Dual Channel DDR4-4866, 3x PCI-E 3.0 x1 slots , 1x M.2 Gen4 x4 + 1x M.2 Gen3 x4 slot 6x SATA 6Gb/s ports, 2x USB 3.2 Gen 2 10Gbps (1 Type-A + 1 Type-C),4x USB 3.2 Gen 1 5Gbps,8x USB 2.0
| Socket | AM4 |
|---|---|
| CPU | AMD Ryzen 3 |
| Chipset (N) | AMD B550 |
| BUS[MHz] | 1600 |
| Memorija | DDR4 |
| Broj utora | 4 |
| Max. memorije [GB] | 128 |
| Takt memorije [MHz] | 2133 |
| AGP 4x/8x | n/a |
| PCI | n/a |
| PCIe 3.0 x16 | 1 |
| PCIe x16 | n/a |
| PCIe x8 | n/a |
| PCIe x4 | 1 |
| PCIe x1 | 2 |
| PCI-X | n/a |
| PATA | n/a |
| SATA II | n/a |
| SATA3 | 6 |
| RAID | 0 |
| Audio | 8-kanalni audio |
| Mreža | 1x 10/100/1000 Ethernet |
| Parallel | n/a |
| Serial | n/a |
| PS/2 mouse | n/a |
| PS/2 keyboard | 1 |
| eSATA | 0 |
| D-sub | n/a |
| DVI | n/a |
| Display Port | 1 |
| HDMI | 1 |
| RJ45 | 1 |
| USB 2.0 | 4 |
| USB 3.0 | 0 |
| S/PDIF Out | n/a |
| FireWire | 0 |
| 4-pin ATX 12V Power | n/a |
| 8-pin ATX 12V Power | Y |
| 20-pin ATX Power | n/a |
| 24-pin ATX Power | Y |
| Front panel audio | Y |
| Chasis Intrusion | n/a |
| CD Audio In | n/a |
| Chasis Fan Power | 6 |
| CPU Fan Power | 2 |
| Format ploče | ATX |
| WLAN connector | n/a |
| Podrška za integrirani grafičk | Y |
| SATA Express | n/a |
| M.2 | 2 |
| U.2 | n/a |
| USB 3.1 | 0 |
| USB 3.1 | 1 |
| PCIe 4.0 x16 | 1 |
| USB 3.2 | 4 |
| PCIe 5.0 x16 | 0 |
